Unleash 3D on your Factory Floor

3D visualization on the shop floor transforms your factory operations into a competitive advantage. Increase yield and reduce scrap from your plant by providing real-time access to 3D visuals that empower your people to understand assembly requirements, capture quality issues, and communicate virtually across your entire assembly line instantly.

Get a demo
Contact Us

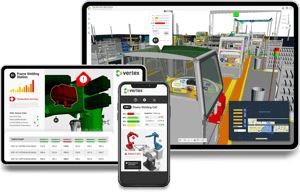

factory-floor-work-instuctions-3d-visualization
mission

Challenge

Most complex manufactured products have some degree of customization. This puts pressure on manufacturing operations to provide agile assembly processes to meet customer demands. Even with significant agility, workstation operators struggle with product assembly due to increasing complexity of manufactured products.


problem-solving

Business Impact

Customization challenges often result in build accuracy and quality concerns. Product customer receives does not match expectations from ordering process, resulting in rework at the OEMs expense, and damages brand trust. Fulfillment issues like these can lead to longer time to recognize revenue and risks future business.

solution

Solution

Make as-ordered, interactive 3D product visuals available to all team members in the factory. Ensure what's being built always matches customer orders with a shared, virtual context. Accelerate defect identification and resolution to keep the line moving.

How Vertex Helps

Vertex Software unleashes 3D product data for use on the factory floor, enabling you to leverage your investment in PLM and CAD beyond engineering - improving yield and reducing scrap.

Our cloud-based 3D visualization software integrates with source data systems such as PLM and ERP to distribute 3D visuals of complex product configurations to every workstation in your factory.

deviceProvide instant access to 3D data on any low power or mobile device with a browser and an internet connection
collaborationImprove communication and collaboration throughout your factory
errorIncrease yield and reduce scrap by eliminating costly production errors
feedback(1)Increase customer satisfaction. Ensure what's built always matches their order
Key Capabilities

Give Factory Ops the tools they need to succeed

  • Device Agnostic
  • As-Built = As-Ordered
  • No Files
  • Less Paper-Based Processes

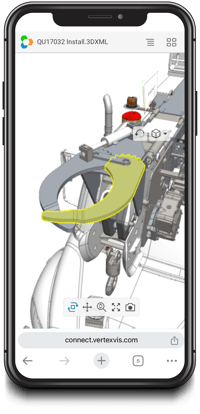

ANY DEVICE, ANYWHERE

Ideal for broadly sharing distributed 3D models on mobile and low-power devices that you rely upon on the factory floor - even with low connection speeds. No need to invest in expensive computing hardware and software.

factory-floor-device-agnostic-3d



INCREASE BUILD CONFIDENCE

A virtual 3D representation of the exact configuration that your customer ordered ensures that an error-free product will be delivered based on the customer's specifications.

factory-floor-built-order-3d



STREAM PIXELS, NOT FILES

Vertex makes it easy to distribute 3D content to everyone on the factory floor since we stream context-aware pixels with associated metadata onto any device. No need to move and copy large files.

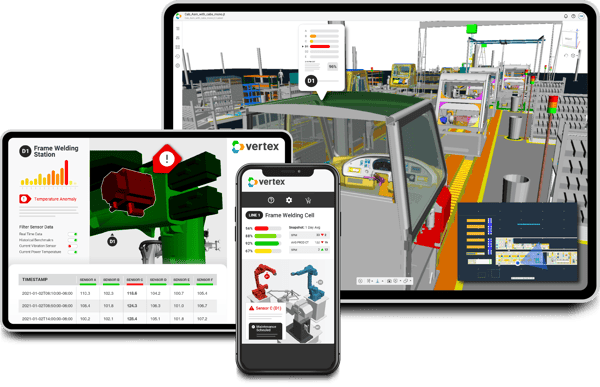

factory-floor-work-instuctions-3d-visualization-1

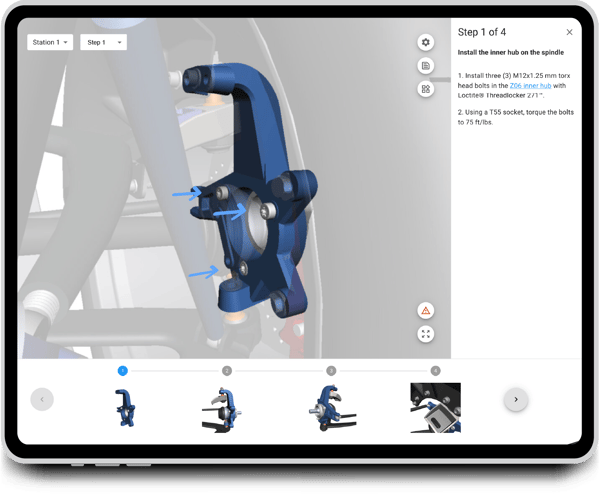

ASSEMBLY INSTRUCTIONS & BUILD REPORTING

Leverage 3D configurations created during the sales process in the factory for assembly instructions and build reporting. Vertex runs on low-power devices and replaces error-prone paper-based documentation that accompanies each order on the assembly line.

factory-floor-assembly-instructions-3d



Key Capabilities

Give Factory Ops the tools they need to succeed

  • Device Agnostic
  • As-Built = As-Ordered
  • No Files
  • Assembly Instructions & Build Reporting

ANY DEVICE, ANYWHERE

Ideal for broadly sharing distributed 3D models on mobile and low-power devices that you rely upon on the factory floor - even with low connection speeds. No need to invest in expensive computing hardware and software.

CX device agnostic



INCREASE BUILD CONFIDENCE

A virtual 3D representation of the exact configuration that your customer ordered ensures that an error-free product will be delivered based on the customer's specifications.

image_32



STREAM PIXELS, NOT FILES

Vertex makes it easy to distribute 3D content to everyone on the factory floor since we stream context-aware pixels with associated metadata onto any device. No need to move and copy large files.

Factory Hero



REPLACE PAPER-BASED PROCESSES

Leverage 3D configurations created during the sales process in the factory for assembly instructions and build reporting. Vertex runs on low-power devices and replaces error-prone paper-based documentation that accompanies each order on the assembly line.

Factory assembly
