Operational MBD Workflows
Access authoritative model-based definition directly from PLM, without PDFs, exports, or disconnected viewers.
Extend governed access to authoritative model-based definition beyond engineering with secure browser-based workflows connected directly to PLM-controlled product definition.
Enable governed MBD access
Extend authoritative model-based definition beyond engineering without distributing derivative files or requiring native CAD access.
Embed operational MBD workflowsIntegrate governed access to
model-based definition into dashboards, supplier portals, service systems, and enterprise applications.

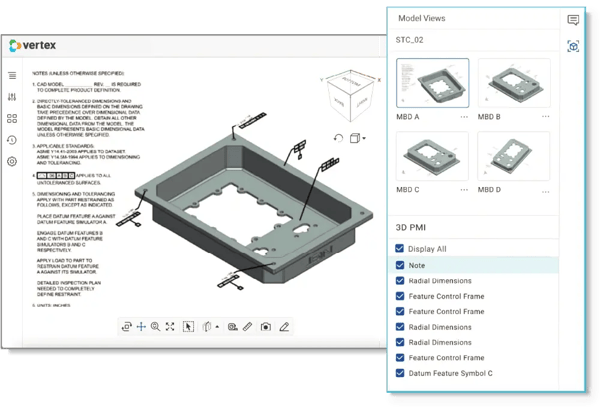

Authoritative Model ContextSupport semantic PMI, GD&T, tolerances, cross-sections, measurements, visibility states, and inspection workflows directly from PLM-controlled models.
- Semantic PMI Access
- Inspection & Review
- Operational Workflows
- Enterprise Embedding

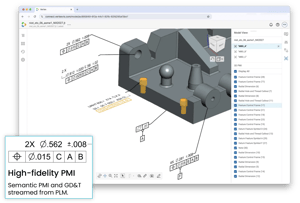

Access authoritative model-based definition directly from PLM
-
Stream semantic PMI, GD&T, tolerances, and annotations without exporting derivative files.
-
Preserve authoritative model-based definition context across engineering, manufacturing, and supplier workflows.
-
Support standards including ASME Y14.41 and ISO 16792.
- Keep model-based definition aligned with current product definition and revision context.

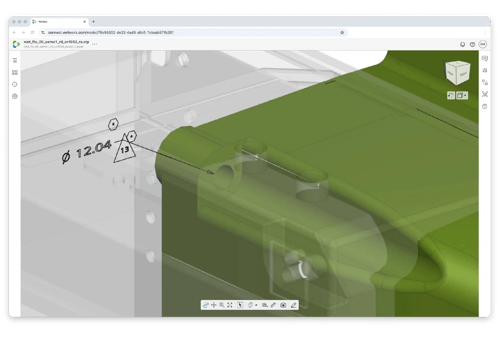

Review and inspect complete
3D product definition
-
Support cross-sections, measurements, visibility states, and semantic inspection workflows.
-
Enable browser-based review without native CAD applications.
-
Improve interpretation of manufacturing and quality requirements using governed 3D context.
-
Reduce ambiguity introduced by PDFs, disconnected redlines, and derivative files.
Operationalize model-based definition
across enterprise workflows
-
Extend governed access into manufacturing, service, and supplier environments.
- Deliver current product context without manual exports or file staging workflows.
-
Support fit-for-purpose operational applications connected directly to PLM-controlled systems.
-
Reduce version drift across enterprise teams.

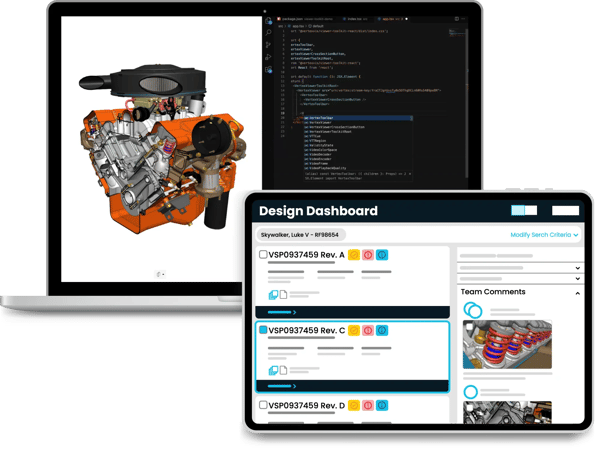

Embed governed 3D access into enterprise systems
- Integrate secure model-based workflows into portals, dashboards, MES, and enterprise applications.
-

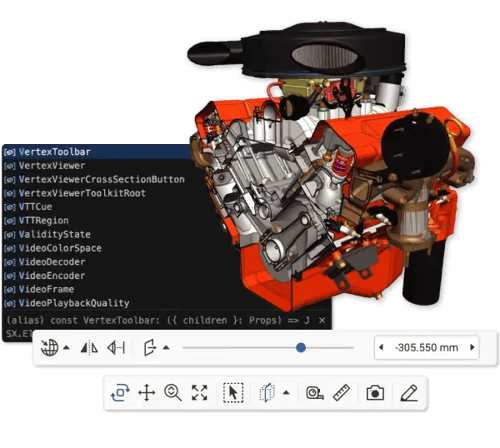

Use APIs and SDKs to extend product definition into operational systems.
-
Maintain PLM governance across broader enterprise access workflows.
-
Support enterprise-scale operations without replicating CAD data.
Resources
Keep PLM Authoritative Across the Enterprise
Extend governed 3D access into manufacturing, suppliers, service, and operations—without derivative file distribution.
