Advanced Collaboration. Unlimited Reach.
Build Custom 3D Experiences with Proven Collaboration Tools
The Vertex Engage module brings the proven power of Vertex Connect to the entire enterprise. By componentizing Connect’s time-tested collaboration and inspection features, Engage enables your teams to build custom, fit-for-purpose applications using Vertex’s high-speed backend APIs and robust frontend SDKs.
Enable enterprise-wide access across engineering, supply chain, service, and support teams to interact securely with 3D data—no CAD licenses or file sharing required.
Support PMI and inspection with assembly and part-level annotations, semantic visibility, cross-sectioning, precise measurements, and walk mode.
Scene interaction tools (search, hide/show, ghost/select), snapshot UX, visual state APIs

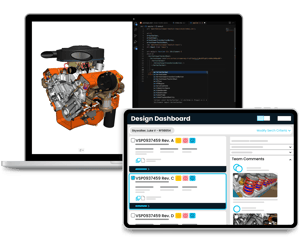

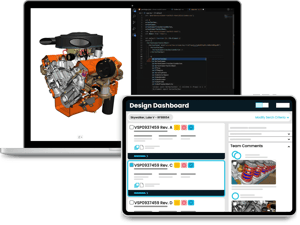

Embed Vertex capabilities in dashboards, engineering portals, supplier interfaces, and no-code/low-code environments like Mendix and Tableau.- 3D Viewer Toolkit
- Collaboration SDK & APIs
- Snapshots
- PMI & Inspection
- Secure Export Options

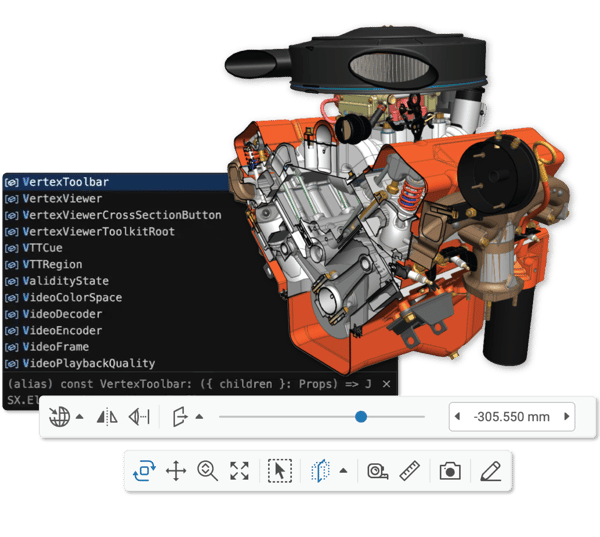

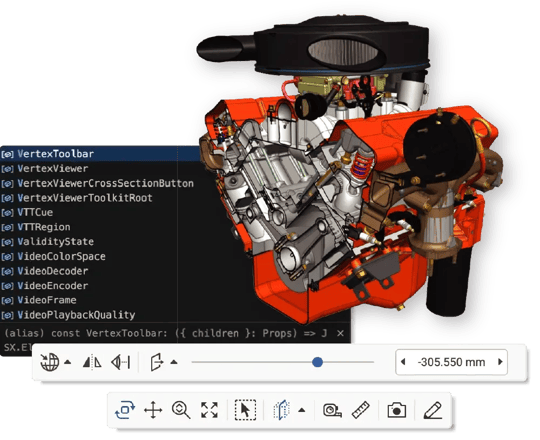

CONTROL AND INTERACT WITH COMPLEX SCENES USING INTUITIVE TOOLS
-
Advanced 3D model viewing and inspection tools with the low-code toolkit.
- Includes cross-sectioning and precise measurement for detailed analysis.
-
Customizable scene tree with advanced filtering options.
- Flexible part appearance and transformation controls to support tailored workflows.

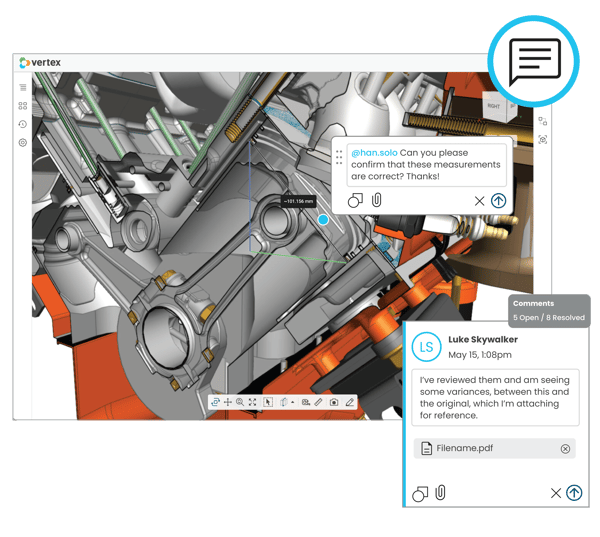

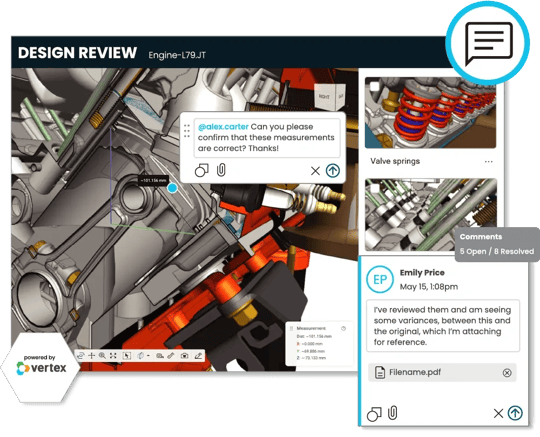

EMPOWER TEAMS TO COLLABORATE SECURELY
-
Enable real-time collaboration and feedback to accelerate decisions while reducing cycle times.
-
Keep teams aligned with built-in collaboration context–see what's changed, why, and who's involved.
-
Use @mentions to engage specific teammates and drive focused conversations.
-
Streamline workflows by tracking and resolving issues across workstreams.
-
Attach files directly to collaboration threads to provide supporting data in context.
EMPOWER TEAMS TO COLLABORATE SECURELY
-

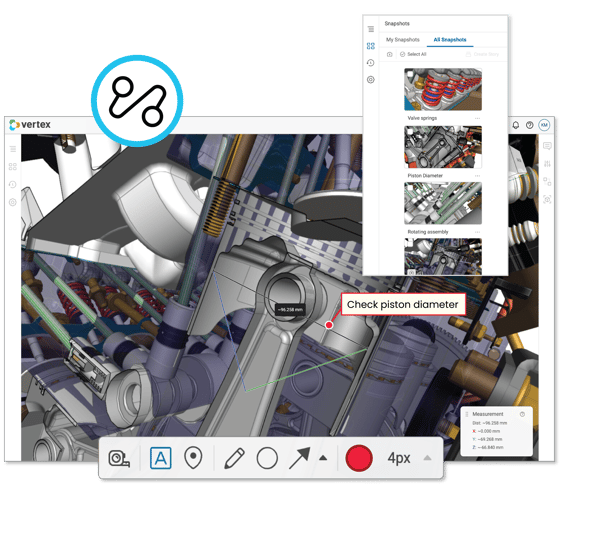

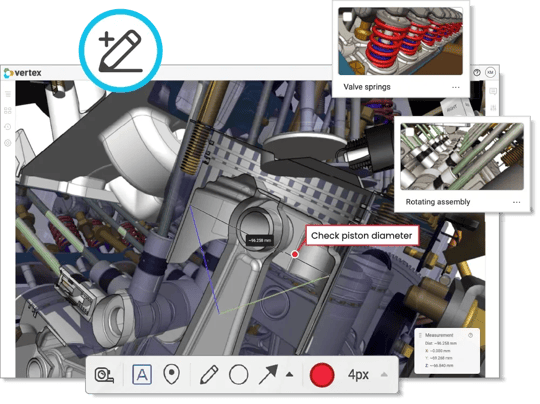

Highlight critical details with intuitive, easy-to-use annotation tools.
- Capture and share scene states or snapshots on simplified, lightweight models to align teams.
-
Track design progress over time by saving and comparing visual states throughout the product lifecycle.

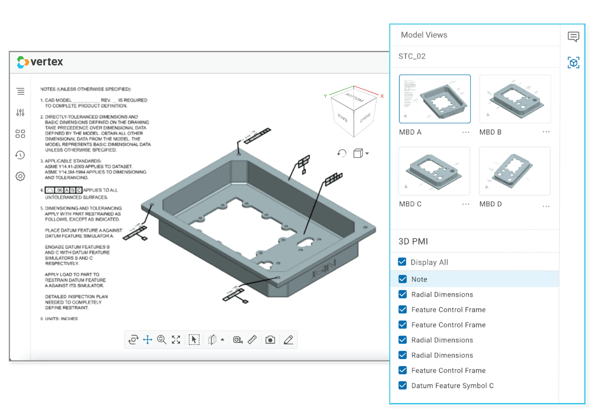

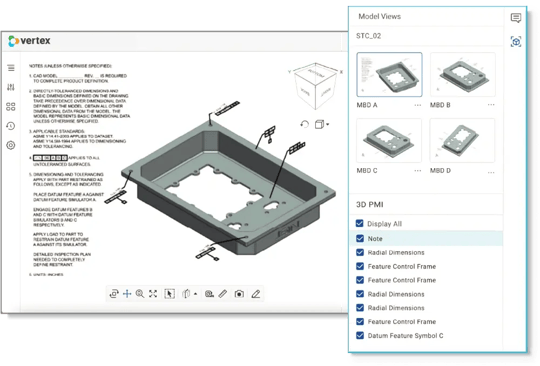

SECURE PMI ACCESS OF FULLY
ANNOTATED MODELS
- Stream rich, model-based product details—dimensions, tolerances, GD&T—without exports or PDF redlines.
- Vertex supports industry standards like ASME Y14.41 and ISO 16792, ensuring consistent interpretation across teams and systems.
- Review fully defined 3D models securely in any browser, always in sync with your PLM data.
MAINTAIN STRICT CONTROL OVER DOWNLOADABLE CONTENT
- Administrator-controlled download of geometry, drawings, PDFs, and metadata as a packaged .zip file.
- Supports compliance and traceability requirements.
Resources
Streamline 3D Collaboration Now
Test drive our preloaded models or upload your own in minutes. Connect, share, and collaborate with your biggest 3D models on any device with unmatched performance.
