Vertex Product Overview

Vertex Software’s cloud-based 3D visualization enables uninterrupted collaboration across engineering, operations, sales, marketing, service, and support. Render 100% of the 3D data in the cloud, and zero-install means your end-users are just a click away from an interactive 3D experience. That's why we're the Netflix for CAD.

REQUEST FREE TRIAL
manufacturing-collaboration-cloud-3d-visualization

Watch how Vertex ensures your IP remains secure

The Vertex Solution

Marchitecture Graphic Image- White
  • Collaboration
  • Developer Tools
  • Data Exploration
  • Data Sharing & Access
  • Data Security

You need the ability to effectively collaborate on 3D models with all of your value chain partners, from the supply chain through go-to-market and customer support.  And it shouldn’t require in-person travel with expensive laptops, massive printouts, or complex file-sharing. Vertex provides all the visualization, markup, commenting, versioning, and change management capabilities you’ll need to open the floodgates of productivity throughout your value chain.

  • 3D Snapshots
    Capture your camera view along with 3D transforms, material colors, and markups; including 3D pins, shapes, freehand drawings, comments, and text. Easily update snapshots with new model revisions.

  • Vertex Stories
    Share 3D snapshots and comment, markup, measure, and cross-section together with your colleagues. Create, track, and resolve issues, attach other file types, and selectively give collaborators access to cross-sectioning, measurement, and model export.

  • Shared Workspaces
    Collaborate with coworkers using our approach for sharing CAD data and other file types. Create secure cross-org workspaces for suppliers and partners.

  • Version Control and Change Management
    Vertex synchronizes with upstream version control and change management. E.g., Changes in upstream PLM or CAD systems will be reflected downstream in Vertex.

The power of the Vertex platform can be embedded into your existing applications and processes or used to create fit-for-purpose custom applications for your business, leveraging powerful APIs and a comprehensive SDK library.

  • High-Performance REST API
    Use our high-performance REST API to import and export data, build, render, and update 3D scenes, and deliver high-quality interactive 3D to any device. Keep your UI in sync with 3D scenes and data events using WebHooks.

  • Open Source SDK
    Join our Developer Community and get a jumpstart building 3D applications. The SDK has all you need to get started, including React Component Bindings, Node API and Java Clients, HTML 5 Web Components, and more.

  • Powered by AWS
    The Vertex 3D Platform runs on AWS. Like AWS, we offer usage-based pricing enabling you to pay as you go. Visit AWS Marketplace to get started.

You’ve secured and shared your 3D models, so now it’s time to get to work on understanding the models and proposing the best next step solutions. Vertex provides powerful capabilities to search and filter on any aspect of the CAD data, build dynamic views to experiment with changes, and visualize immediate results.

  • Dynamic 3D Views
    Modify your 3D view on the fly and see changes instantly. Update 3D model structure, object position and orientation, visibility, material color, transparency, cross-sectioning, measurement, and more.

  • Metadata Search & Filter
    Metadata supports the context-aware pixels that Vertex streams instead of files. Vertex enables users to search and view metadata from CAD and other data sources to quickly identify, select, and operate on parts, assemblies, and other 3D objects.

  • Cross Section & Measurement
    Create cross sections and measurements of massive CAD data and share with collaborators instantly.
Trying to share 3D data across incompatible systems spanning different internal and external organizations beyond engineering is a significant challenge for most OEMs and component suppliers. Vertex unlocks 3D data for all by ensuring any 3D models can be imported, exported, and merged - including the ability to visualize even the most massive complete models.
  • 3D Model and Metadata Import
    Upload any major CAD or neutral file format, track version history, and take complete control over how you share CAD data. Vertex data API supports direct integration with PDM, PLM, ERP, BIM, and MES systems.

  • Merge Models
    Combine 3D CAD data from more than 70 different file formats, including the ability to sync across multiple software versions, to create a unified full-product Vertex model for collaborating with suppliers and partners.

  • 3D File Export
    With the appropriate permissions, the ability to export your entire model or a reduced-BOM to a neutral format (e.g., JT, STEP), regardless of the file formats you imported.

  • For-purpose Massive Models
    Build powerful 3D applications with massive multi-CAD, multi-BIM, and multi-PLM scenes showing complete manufacturing, architecture, and construction designs.

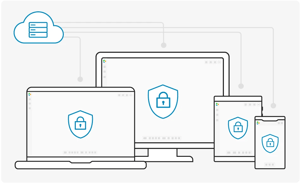

Your 3D CAD files house valuable intellectual property (IP) that may include trade secrets, national security, and sensitive data with regulatory controls. Vertex utilizes a zero-trust access approach, ensuring only approved users have the minimum required access to this data while still securely delivering complete 3D visualization and collaboration to everyone else throughout your value chain.
  • Streaming Pixels, not Files
    The Vertex rendering engine only streams context-aware pixels with associated metadata to clients rather than sending actual 3D geometry - protecting IP.

  • Data Encryption in Transit and at Rest
    All data within Vertex is encrypted in transit and at rest using AES-256-bit encryption.  Encryption at rest leverages the security and reliability of the AWS Key Management Service to ensure the confidentiality, availability, and integrity of your data.

  • Data Distributed across Multiple Servers
    Any data uploaded to Vertex is encrypted and broken into different pieces and distributed across multiple AWS servers. Original data is never vulnerable to an attack targeting a single server.

  • Data Administration
    Vertex admins have full control over the data each named user can see, how long they can see it, and what they are allowed to export. Additional security features include SSO, sharing rules, and complete audit logs.

  • NIST CyberSecurity & SOC 2 Frameworks
    Controls modeled after relevant aspects of the NIST CyberSecurity Framework and AICPA SOC 2 control framework. SOC 2 Type 2 compliance was achieved in 2020 and 2021. AWS GovCloud deployment option is also available.

The 5 Pillars of the Vertex Solution

  • Collaboration
  • Developer Tools
  • Data Security
  • Data Exploration
  • Data Sharing & Access

You need to effectively collaborate on 3D models with all of your value chain partners, from the supply chain through go-to-market and customer support. And it shouldn’t require in-person travel with expensive laptops, massive printouts, or complex file-sharing. Vertex provides all the visualization, markup, commenting, versioning, and change management capabilities you’ll need to open the floodgates of productivity throughout your value chain.

  • 3D Snapshots

  • Vertex Stories

  • Shared Workspaces

  • Version Control and Change Management

The power of the Vertex platform can be embedded into your existing applications and processes or used to create fit-for-purpose custom applications for your business, leveraging powerful APIs and a comprehensive SDK library.

  • High-Performance REST API

  • Open Source SDKs

  • Powered by AWS

Your 3D CAD files house valuable intellectual property (IP) that may include trade secrets, national security, and sensitive data with regulatory controls. Vertex utilizes a zero-trust access approach, ensuring only approved users have the minimum required access to this data while still securely delivering complete 3D visualization and collaboration to everyone else throughout your value chain.

  • Streaming Pixels, not Files

  • Data Encryption in Transit and at Rest

  • Data Distributed across Multiple Servers

  • Data Administration

  • NIST CyberSecurity & SOC 2 Frameworks

You’ve secured and shared your 3D models, so now it’s time to get to work on understanding the models and proposing the best next step solutions. Vertex provides powerful capabilities to search and filter on any aspect of the CAD data, build dynamic views to experiment with changes, and visualize immediate results.

  • Dynamic 3D Views

  • Metadata Search & Filter

  • Cross Section & Measurement

Sharing 3D data across incompatible systems spanning different internal and external organizations beyond engineering is a significant challenge for most manufacturers. Vertex unlocks 3D data for all by ensuring any 3D models can be imported, exported, and merged - including the ability to visualize even the most massive complete models. Import data from non-CAD business systems (ERP, MES, etc.) and have that data aligned with 3D data for more advanced analysis and visualization capabilities.

  • 3D Model and Metadata Import

  • Merge Models

  • 3D File Export

  • For-purpose Massive Models

Ready For the Next Step?

Whether you're a small business, enterprise, or individual user, our deployment options cater to diverse requirements. Unlock powerful features, scalability, and support tailored to your projects. Get started on your journey with Vertex today.
See Deployment Options

Organizations like yours are transforming the way they work

"We can run Vertex on our phone and show complex information without needing a lot of computing power.”
Vermeer CorpProject Engineer
“I’ve spent 28 hours translating a file Vertex opened in seconds.”
Atlas CopcoZone Manager
"With Vertex, it’s almost as if the customer is on the truck before it’s even built. Customers are delighted, and the quality of the end build is better.”
Terex UtilitiesProject Lead
“The capabilities we see in the Vertex platform will be a source of competitive advantage for us.”
Fortune 100 Manufacturing companyProgram Manager

Vertex Connect™️

Vertex Connect is a cloud application that enables you to share and collaborate with CAD, PLM, and BIM data on any device. Not just laptops and desktops, but phones and tablets too. Onboard in minutes and start sharing 3D data instantly.

Learn More about vertex connect
alignment

Vertex 3D Platform

The Vertex 3D Platform enables you to embed interactive 3D content in web-based and native apps quickly and easily. Get a jumpstart with our open-source SDK and its ready-made UI components and utilities. No 3D experience required to get started!

LEARN MORE ABOUT THE VERTEX 3D PLATFORM
image (12)
vertex-uc-og-manufacturing

Ready for the Next Step?

Connect, share, and collaborate with your biggest 3D models on any device with unmatched performance and security.
